simple & elegant
High-quality flat shower tray in stone look
- Info
- Material
- Data

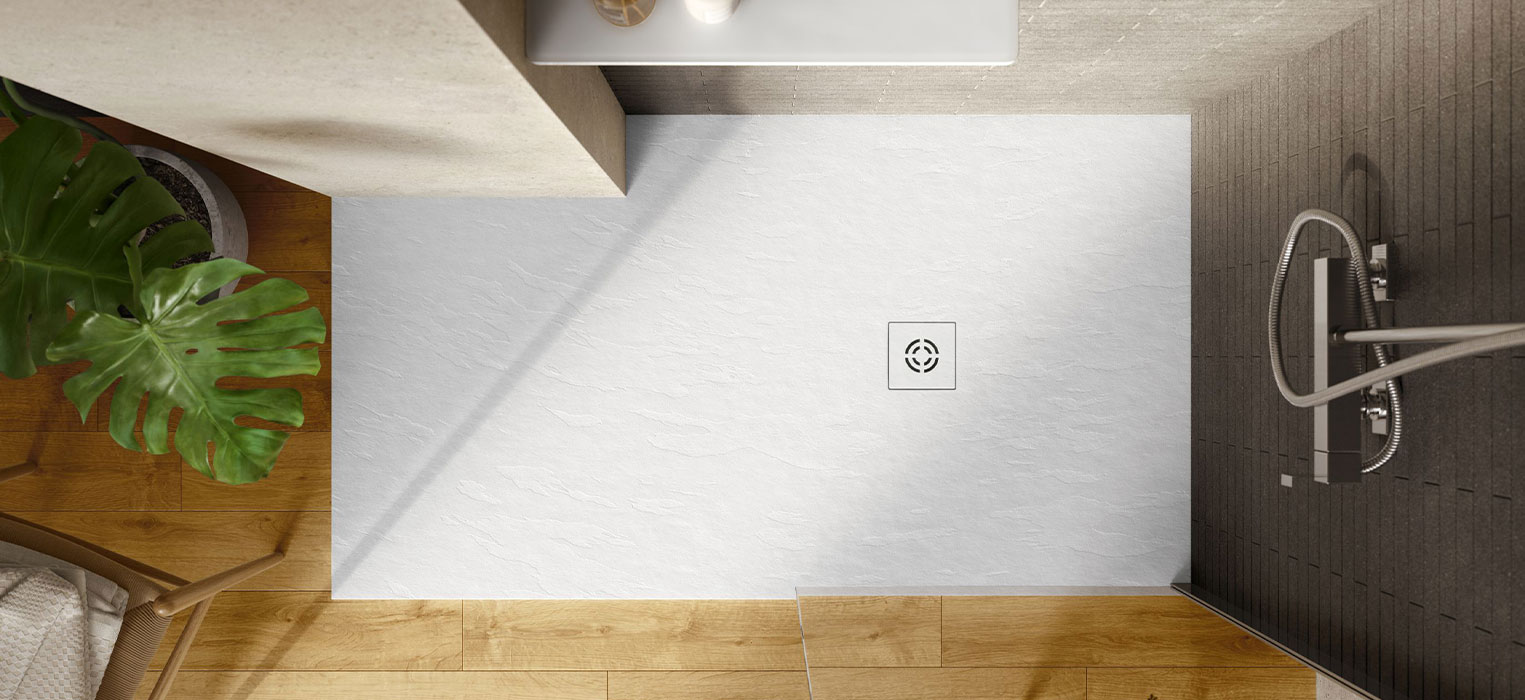

The mineral casting shower tray
The surface texture, modeled on a granite slab, makes the BERGEN shower tray series made of mineral cast a highlight in the bathroom. The stone-look shower tray is available in white, anthracite, cappuccino and cement. The cast mineral material is made from calcium carbonate powder combined with polyester resins and coated with a gelcoat. This makes the shower trays particularly resistant and scratch-proof. BERGEN cast mineral shower trays are also slip-resistant in accordance with DIN 51097 class C. All BERGEN shower trays can be adapted to individual requirements on site. The shower tray can be installed flush with the floor and, thanks to the material and barrier-free installation, meets the criteria for age-appropriate conversions.
Material: Mineral casting
| Version | Dimensions | Weight | Data sheet |
|---|---|---|---|
| BERGEN 80/80 | 80 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 90/90 | 90 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 100/80 | 100 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 100/90 | 100 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 100/100 | 100 x 100 x 1 cm | 40 kg / m² | Download |
| BERGEN 120/80 | 120 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 120/90 | 120 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 120/100 | 120 x 100 x 1 cm | 40 kg / m² | Download |
| BERGEN 140/80 | 140 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 140/90 | 140 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 140/100 | 140 x 100 x 1 cm | 40 kg / m² | Download |
| BERGEN 160/80 | 160 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 160/90 | 160 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 160/100 | 160 x 100 x 1 cm | 40 kg / m² | Download |
| BERGEN 180/80 | 180 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 180/90 | 180 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 180/100 | 180 x 100 x 1 cm | 40 kg / m² | Download |
| BERGEN 200/80 | 200 x 80 x 1 cm | 40 kg / m² | Download |
| BERGEN 200/90 | 200 x 90 x 1 cm | 40 kg / m² | Download |
| BERGEN 200/100 | 200 x 100 x 1 cm | 40 kg / m² | Download |
| SPECIFICATION | |
|---|---|
| Series: | Bergen |
| Material: | Mineral casting |
| Colour: | Granite White, Anthracite, Cappuccino, Cement |
| Coating: | BERGEN surface structure evaluation group C according to DIN 51097 |
| Care instructions: | Download |
Equipment
Shower & wall in the same look
- Repaneel Wall panels
- Assembly
REPANEEL wall panels
Seamless wall panelling in the bathroom
You are currently viewing a placeholder content from YouTube. To access the actual content, click the button below. Please note that doing so will share data with third-party providers.
More InformationAssembly
Installation tip: easy sealing under the shower.
Infrared in the shower
Feel good and relax in the bathroom
